Automatic Solar Tracker
Model SMT
The Eppley Automatic Solar Tracker, Model SMT was developed to allow convenient automatic pointing of normal incidence solar radiation measuring instruments (sNIP , AHF) at the sun. Due to its robust design, users have continued to expect solar trackers to do more and more and the SMT does not disappoint. Eppley offers an optional Shade Disk Kit that allows for shading and ventilation of pyranometers and pyrgeometers. During intercomparisons, it is common to see four or more AHF Cavity Radiometers on a single tracker.

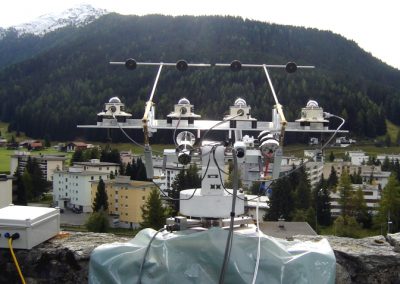

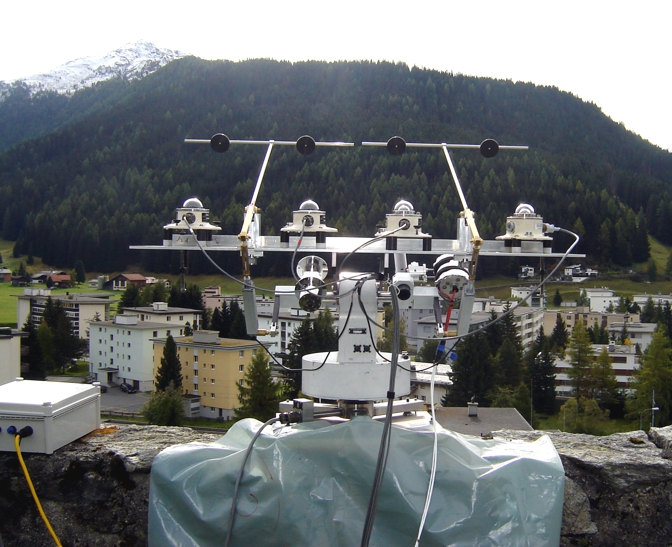

Model SMT modified by user to “shade cal” 4 pyranometers

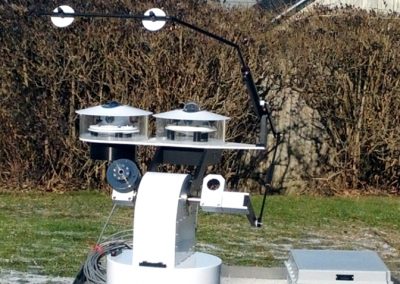

SMT in typical BSRN mode with SDK, PIR, SPP and sNIP

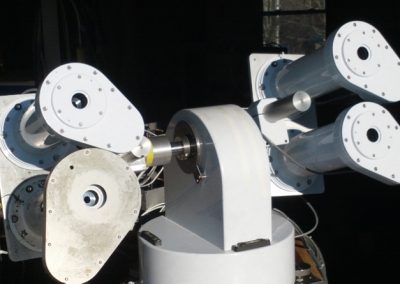

25 year old SMT with four AHF Cavity Radiometers
CLICK HERE to download Specifications [PDF]
| Environment Conditions | |
| Latitude | -90 to +90 |
| Please notify us if used in the Tropic Zone | |
| Operating Temperature | -50ºto +80ºC |
| Operating Humidity | 0-100% RH |
| Operating Wind Speed | 0-70 mph |
| Physical Specifications | |
| Tracker Weight | 70 lb |
| Tracker Dimension | 16″ height by 18″ diameter |
| Mounting | Tripod stand included |
| Performance | |
| Input Power | 110 VAC or 220 VAC please specify |
| Power Consumption | 100 W |
| Pointing Precision | 0.01875º per step |
| Pointing Accuracy | <1º monthly |
| Software/Hardware | Included in the price. |
